1.TABLE OF CONTENTS
|
1. |
TABLE OF CONTENTS |
3 |
|
2. |
OPERATION INSTRUCTIONS |
4 |
|
|
Instruction on usage;Measurement range; Focus adjustment; Units switch; Slope switch function; Flag lock mode with Continuous scan function; Golf mode example |
|
|
3. |
PRODUCT SPECIFICATIONS |
11 |
|
4. |
DESCRIPTION OF THE SCREEN DISPLAY |
12 |
|
5. |
COMPONENTS NAME |
13 |
|
6. |
HOW TO WORK AND RANGING ACCURACY |
14 |
|
7. |
GETTING TO START |
15 |
|
8. |
LIST OF ARTICLES |
16 |
|
9. |
USE SAFETY INSTRUCTIONS |
17 |
|
10. |
PRECAUTIONS OF LITHIUM BATTERY |
19 |
|
11. 1 |
MAINTENANCE OF THE INSTRUMENT |
19 |
|
12. |
TROUBLE SHOOTING TABLE |
20 |
|
13. |
CUSTOMER SERVICE/WARRANTY |
21 |
2.OPERATION INSTRUCTIONS
Instruction on usage
Instruction on usage
1.Look at LCD through the eyepiece, then press "POWER" button and release quickly,
you will see the display as right picture. Pressing "POWER" button again to measure.
(The laser rangefinder will auto power-off if no operation within 8 seconds.)
2.Placing the aiming circle (located in the center of view) on a target over than 5 yards away, press "POWER" button and release quickly. The range and slope compensation distance,angle will be displayed on LCD.
LCD upper data display order: slope compensation distance, angle, slope compensation distance.
(Straight-line distance is 20.82 yards, angle is 4.9 degrees, and slope compensation distance is 22 yards).
For the parabolic distance of uphill / downhill slope. Please refer to Page 10 "Golf mode example". Tips: When target’s background is complicated or difficult to measure by range mode, you can use flag lock mode.
Measurement range
Reflective range: 5～600 Y
Tree range: 5～400 Y
Flag range: 5～200 Y

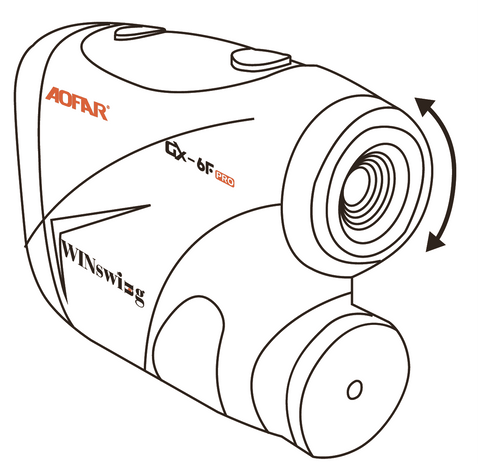

Focus adjustment
Rotating the eyepiece until the reticle and object display to your eye clearly.
GX-6F pro range finder is constructed with an adjustable eyepiece(+/-3 Diopter).
People with different visions don’t need to wear glasses, they can observe LCD with naked eyes.
Units switch
To select yard or meter, just click "MODE" button quickly to change "Y" (yard) and "m" (meter).
It can measure distance in yard or meter. The unit indicator is located in the lower right portion of the LCD.

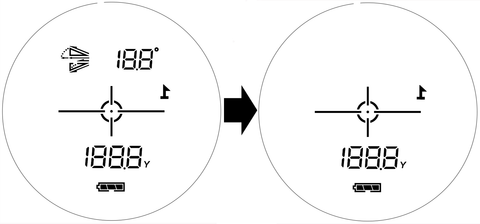

Slope switch function
Press and hold the "MODE" button for 3 seconds.The data displayed at the top will disappear, which is designed for golf tournament. If you want to turn on the slope mode, just press the "MODE" button again for 3 seconds.
Flag lock mode with Continuous scan function
1.Flag lock mode (with pulse vibration happen)
Lock mode sign: After you lock onto flag successfully,
the circle on flag sign will shows. (Like image shows)
Method: Pressing "POWER" button and scan from far to flag,
at the same time,the circle on the flag will show,
you will get distance and feel vibration.
2.Continuous scan function
After locking successfully, holding "POWER" button and move to closer targets(above 5 meters/6yards)can active "Continuous scan function".
After activating "Continuous scan function", you can only read the reading of target closer than the previous target.
Notice 1:After activating "Continuous scan function", you can use this function for 10 seconds, that is the maximum measurement time of laser. After 10 seconds, it will stop reading, and LCD will display the last target's data you measured.
Notice 2:To use this "Continuous scan function" again, just repeat the above operation.
Notice 3:To use "Continuous scan function", do not release "POWER" button after locking successfully, you should press and hold POWER button to closer target.
Golf mode example
Distance measurement of ascending slope: Slope is farther than the straight-line distance.
Distance between AB points=AD points spacing is the actual straight-line distance 99.71Y.Hit the ball in accordance with the distance measured with the strike parabolic 1, the angle of slope is + 6.2 °, and the ball will arrive at the point C. To reach the point B, it is necessary to follow the parabola 2. The slope must be the one between point A and point E, i.e. 108Y.
Distance measurement of downward slope: Slope is less than the straight-line distance.
Distance between point A and point B = distance between point A and point D in a straight-line 216.01Y. Hit the ball in accordance with the measured distance with the strike parabola 2, the angle of slope is -12.1 °, the ball will arrive at the point C. To reach the point B, it is necessary to follow the parabola 1. The slope must be the one between point A and point E, i.e. 170Y.
3.PRODUCT SPECIFICATIONS
|
Model |
GX-6F pro |
|
Size |
93 x 38 x 73 mm |
|
Weight |
133g |
|
Power source |
CR2-3V |
|
Reflective range |
5～600 Y |
|
Tree range |
5～400 Y |
|
Flag range |
5～200 Y |
|
Measurement deviation |
± 1 Y |
|
Magnification |
6 Times |
|
Objective diameter |
20mm |
|
Eyepiece diameter |
13mm |
|
Exit pupil diameter |
3.5mm |
|
Laser wavelength |
905nm |
|
Laser type |
Class I |
|
Diopter |
±3° |
|
Operating temperature |
-10～50℃ |
|
Storage temperature |
-20～60℃ |
|
IP Rating |
IPX4 waterproof |
4.DESCRIPTION OF THE SCREEN DISPLAY
 |
|
Uphill display: The target is uphill |
|
|
Downhill display: The target is downhill |
|
|
|
Display order: slope, angle then slope |
|
|
|
Lock mode sign ：Icon change comparison |
|
|
|
Battery indicator |
|
|
|
Target marker: Please superimpose the center circle with target object to be measured |
|
|
|
Measuring distance: Straight-line distance |
|
|
|
Distance unit display |

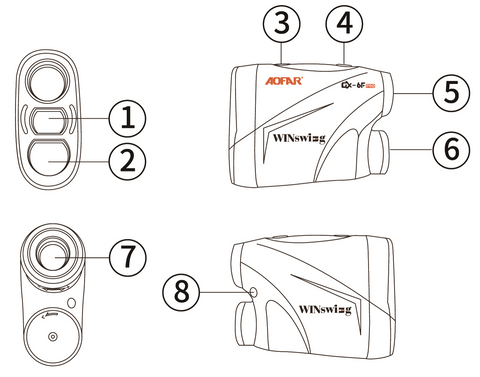

5.COMPONENTS NAME
- Laser TransmittingObjective Lens
- Laser ReceivingObjective Lens
- UnitsSwitchingButton/ "MODE" Button
(m: Meter/Y: Yard)
- Power/Reading Button
- Rotary Focusing
- Observing Eye lens/LCD(Liquid crystaldisplay)
- Battery Cap
- LanyardHole
6.HOW TO WORK AND RANGING ACCURACY
The GX-6F pro range finder emits invisible, eye safe, infrared energy pulses. Sophisticated digital technology instantaneously calculates distances by measuring the time, which it takes for each pulse to travel from the rangefinder to the target and back to rangefinder.
The color, surface smoothness, size and sharpness of target will affect its reflectivity and range.
It is difficult to test in the following conditions and environments:
Raining or fogging / Target is too small / Low reflectivity of the measured object( dark color, complex shape, curved surface, water surface, glass surface, mirror surface. etc.) / Low battery.
7.GETTING TO START
- Remove the battery cap by rotating the cap counter-clockwise.
- Insert a CR2-3V battery.
- Put the negative pole of lithium battery into battery compartment first.
- Re-place the battery cap.
|
Display |
Description |
|
|
Sufficient power available |
|
|
60%power left. |
|
|
Low battery indicator flash: Replace the battery now! *It can be turned on, but it can’t shows any data. Meanwhile, vibration will be paused. |
Note: It is recommended that the battery should be replaced once every 12 months.
Notice: Replace the battery when Low battery indicator shows.
If the " " displays and flash on LCD, which means "low battery". It can be turned on, but it can’t shows any data. Meanwhile, vibration will be paused.

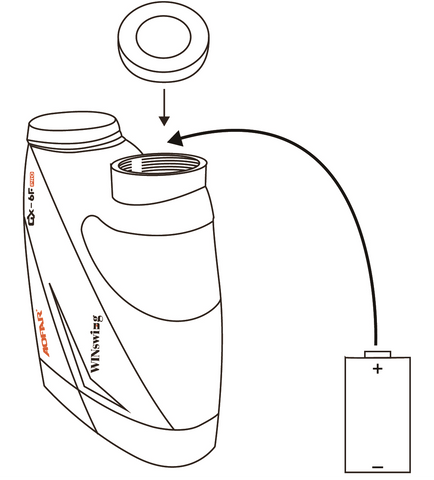

Inserting/Replacing battery
- Open the cap counter-clockwise
- The positive pole "+"of the lithium batteryCR2 should be placed outwards. (look atthe picture)
- Tighteningthe battery cap clockwise after installing the battery.
8.LIST OF ARTICLES
|
|
|
|
Laser rangefinder |
Manual |
|
|
|
|
Carrying case, Lanyard, Cleaning cloth, Battery |
|
9.USE SAFETY INSTRUCTIONS
- Preventingyour instrument from falling or getting damaged and never tamper it. If there is abnormal noise, please contact customer service department of our company.
- The operating temperature for this product is-10 ℃~50 ℃. Please use or keep the instrument within the operating temperature range and avoid using in a sharp temperature change e
- Please do not keep the product under the sunlight directly, high temperature or low temperature environment for a long time. (g.in trunk of car).
- Do not expose and aim at the sunlight.
- Do not use or store the product in the environment with strong electromagnetic radiation or magnetic field.
- If the product isn’t be in usefor a long time, please remove the battery and store it in a cool, dry place. It is also recommended to put this product in a dry box.
- Do not disassemble,modify or repair the product by yourself, the damage of the instrument and the irradiation of the laser may cause the visual damage and other harm.
- Please do not use it in dusty areas in order toavoid failures.
- Although the product has waterproof function, please do not get it wet or immersed in water intentionally. When there is moisture around the button, please operate it after wiping it off, and do not use it in water.
- Please confirm that the battery cover is closedtight when it be used.
Warning!
- Do not lookat the Laser Transmitting Objective Lens.
- Do not measure eyes of others.
- It is forbidden to detach this product yourself.
- It should be kept out of reach of the children.
Attention!
- It is normal for lens to be wet when the temperature changes suddenly. In this situation, remove the battery and do not use the device until it becomes dry.
- Moving from a cold place to a hot room of the product may dew on the appearance and internal parts. To avoid this phenomenon, please put the device in a waterproof plastic bag and take it out after its temperature has gradually increased.
- To avoid failures ,do not store the product in :
- Unventilated and humid places
- The car or trunk exposed to the sun
- Environment with humidity over 90%
※Please don't preserve or place the lens under the sun!
It’s radiation convergence function can harm the LCD
10.PRECAUTIONS OF LITHIUM BATTERY
- To prevent leakage, heat and fire, etc.
Do not disassemble and modify the product by yourself.
Do not throw it into fire or store it in high temperature.
Avoid direct contact with metal objects such as coins or keys (in a pocket or bag).
- If skin touchthe leaked liquid accidentally, please rinse under cool water immediately. If eyes or mouth touch liquid leaking, do not rub. Rinse under cool water and consult a doctor.
- It must be kept out of reach of children.
- Observe treatment methods in your native policywhen dropping a used lithium battery.
11.MAINTENANCE OF THE INSTRUMENT
Gently wipe the surface of lens with a clean, soft cloth to remove stains which would damage it.
If there are stains on the surface of the lens, which may damage lens. Do not touch the lens with your finger to protect the coating from the appearance.
12. TROUBLE SHOOTING TABLE
If LCD can’t be turned on:
- Pressing Power button again.
- Check battery or replace it if necessary.(Determine if there is an insulator blocking the battery power)
If Distance measurement is abnormal:
- Please confirm whether the lens have dirt.
- Please make sure that the mark circle overlap your target.
It can be turned on, but the data will not be displayed:
- Low battery voltage,please change the battery.
- Out of measurement rangeor less than 5 yards.
- Change the measurement target
Measurement error：
- M/Y is not switched
- Rain and fog and small target will also affect the measurement results
Battery power runs out quickly:
- Low ambient temperature will cause the battery power runs out quickly.
- If the battery has not been used for a long time after unpacked, the battery power will run out quickly.
13.CUSTOMER SERVICE/WARRANTY
Customer service：
Website : www.aofar.com
Customer service: service@aofar.com
Facebook: Aofar Us
AOFAR focuses on the research and development of outdoor products especially in range finder and compass, AOFAR has first-class production technology and R&D experts.Nowadays, our products are sold all over the world and very popular. We dedicate to improve customers' outdoor life by rich experience and expertise.
Warranty
The product warranty period is two years from the date of purchase.
- Please take a few minutes to register your product at aofar.com/account/register
- In the event of a need for service or repair, please contact AOFAR Product Service at: service@aofar.com
- For product questions, consult the AOFAR Website at: aofar.comor contact Customer service:service@aofar.com
Our customer service will reply you within 24 hours after receiving your message.
